5-CH DI,5-CH DO,network relay,Modbus TCP Module

5-CH DI,5-CH DO,network relay,Modbus TCP Module

30.6 USD ($)

Get a Price/Quote

Product Details:

Power Supply 8 ~ 32VDC
Application 5 channels switch signal input, and 5 channels digital output signal, and 5 channels relay output.
Communication Modbus TCP
Color blue
Warranty 2
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

5-CH DI,5-CH DO,network relay,Modbus TCP Module Price And Quantity

Minimum Order Quantity 2 Piece
Price 30.6 USD ($)

5-CH DI,5-CH DO,network relay,Modbus TCP Module Product Specifications

Color blue
Power Supply 8 ~ 32VDC
Communication Modbus TCP
Application 5 channels switch signal input, and 5 channels digital output signal, and 5 channels relay output.
Warranty 2

Product Description

Product Overview:
WAYJUN WJ95-RJ45 is a Internet of Things and Industrial Ethernet acquisition module, to achieve the formation transparent between sensor and network. WJ95-RJ45 can send sensor data exchange to network, or send the data forwards network to the sensor.

Features: Five channels switch input, five channels relay output
Supports MODBUS TCP communication protocol
Built-in Webpage function, you can query level state via the webpage
The relay output state can be set via the webpage
DI signal input, DO output and power supply are isolated each other
Wide power supply range: 8 ~ 32VDC
High reliability, easy programming, easy application
Standard DIN35 rail mounting, small size

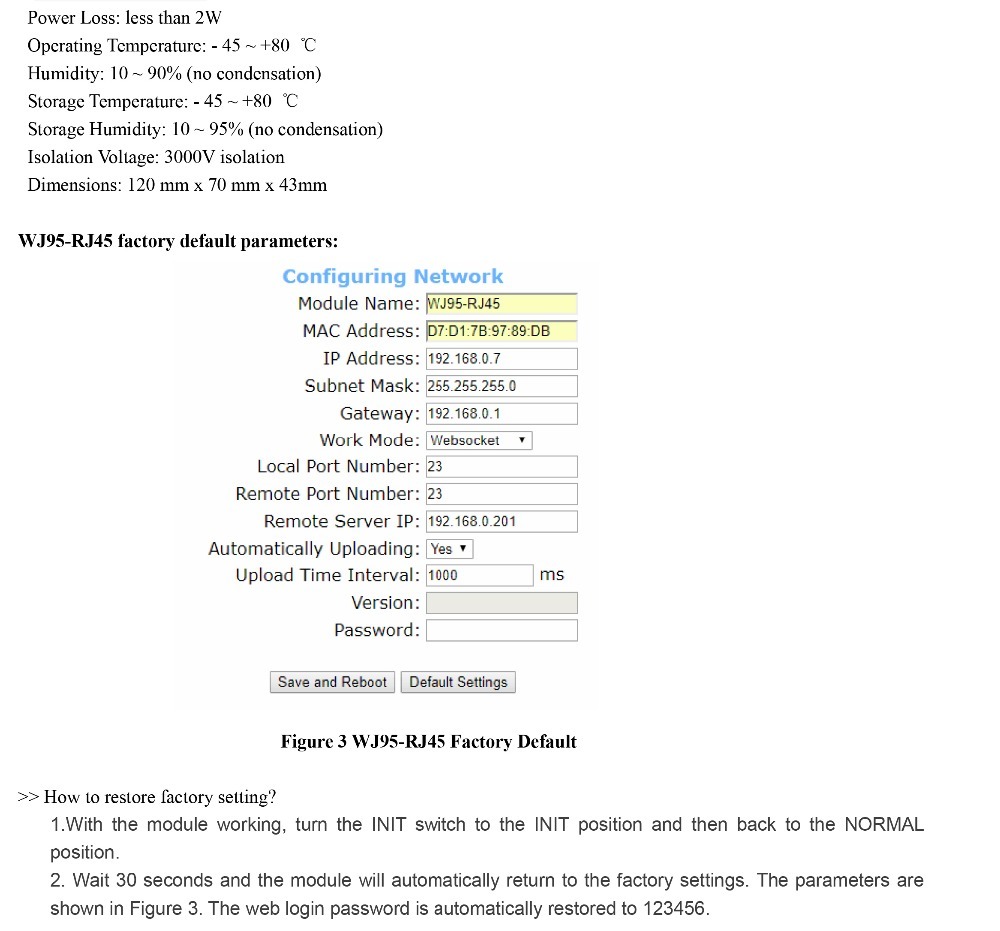

Users can set the module IP address and other parameters on the page
Webpage login can be set account and password
Dimensions: 120 x 70 x 43mm

Function Description:

WJ95-RJ45 remote I/O module can be used to measure 5 channels switch signal input, and 5 channels digital output signal, and 5 channels relay output.

Switch signal input and output
5-CH switch signal input, which can be connected to dry contact and wet contact, details refer to the wiring diagram.
5-CH switch signal output open collector output

Communication protocol
Communication Interface: RJ-45 network interface. The two lights of Ethernet port position, when after the network cable plugged the Link (Green) will be light all the time, Data (Yellow) will flash from time to time.
Communication Protocols: supports MODBUS TCP protocols, can achieve industrial Ethernet data exchange. Also users can access the control module directly via the web.
Network Cache: 2K Byte (both receive and send)
Response Time: <100ms

Anti-jamming

Module internal has transient suppression diodes, can inhibit a variety of surge pulse, protection module.
Product Part No.: WJ95 - RJ
Communication Interfac RJ45: RJ-45 output network interface
