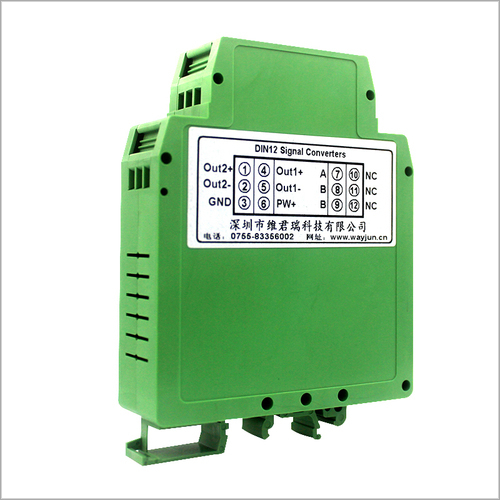

0-10V or RS485 to PWM Isolation Converter
Product Details:
X
0-10V or RS485 to PWM Isolation Converter Price And Quantity
- 1pcs Box
0-10V or RS485 to PWM Isolation Converter Trade Information
- Paypal Western Union Telegraphic Transfer (T/T)
- CE
Product Description
Features:
- Accuracy, linearity error level: 0.1,0.2,0.5 level
- 4-20mA / 0-5V / 0-10V and other standard signal input
- Optional RS485 communication input, support Modbus protocol
- PWM signal output, PWM frequency optional
- PWM output drive capacity up to 5A
- Signal input / signal output 3000VDC isolation
- Can choose one into one, one into two, two into two out
- Optional 5V, 12V, 15V or 24V DC single power supply
- The amplitude of the PWM signal is equal to the power supply voltage
- The auxiliary power supply is not isolated from the PWM signal
- Fixed screw mounting, plug-in terminal block
- Size: 120 x 105 x 29mm
- Industrial temperature range: - 45 ~ +85
Products Listing:
DIN IAP| Channel | Input Signal | Power Supply | Output Signal |
| DIN11: one in one out DIN12one in two out DIN22 two in two out | V1=0-5V V2=0-10V V30-75mV V4-0-2.5V V¡user-defined A1-:0-1mA A2-0-10mA A3-0-20mA A4-4-20mA A5user-defined RS485RS485 interface | P1:24VDC P2:12VDC P3:5VDC P4:15VDC Pz: user-defined | PWM1:50Hz PWM2:100Hz PWM3:1KHz PWM4:10KHz PWM5:100KHz PWM: user-defined |
Samples:
- One in one out Input signal:0-10V Power Supply:24VDC Output Signal:100Hz PWM
Type No.: DIN11 IAP V2-P1-PWM2
- One in two out Input signal:0-10V Power Supply:12VDC Output Signal:100KHz PWM
Type No.: DIN12 IAP V2-P2-PWM5
- One in one out Input signal:RS485 Power Supply:24VDC Output Signal: 100KHz PWM
Type No.:DIN11 IAP RS485-P1-PWM5
- One in one out Input signal:0-10V Power Supply:12VDC Output Signal:5KHz PWM
Type No.: DIN11 IAP V2-P2-PWMz (PWMz:5KHz)
