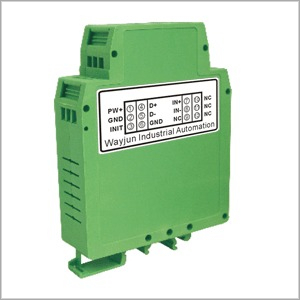

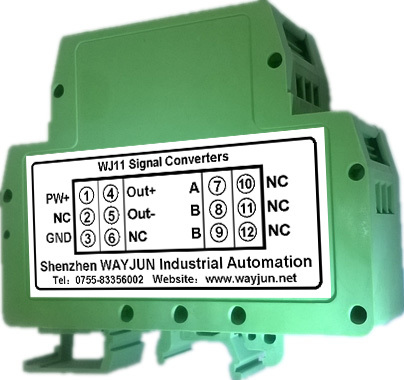

4-20mA To 0-10V Signal Converter

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Our enterprise has gained immense recognition in manufacturing and supplying quality assured array of 4-20mA To 0-10V Signal Converter. This is manufactured with cutting-edge technology in order to meet set industry norms at our well-equipped production unit. The offered converter is used in DC current/voltage for signal isolation, transmission and amplifier. Moreover, this 4-20mA To 0-10V Signal Converter is available in several technical specifications at industry leading rates.

Features:

Longer service life
Power efficient
Trouble-free functioning

General characteristic:

Small size, SIP 12 anti- fire UL94V-0 package
Can be adjusted
Three-port (power/input/output) isolation: 3000VDC
Assistant power supply: 5VDC/12VDC/15VDC/24VDC
0-5V/0-10V/0-75mV/0-2.5V/2-10V voltage signal or 0-10mA/0-20mA/4-20mA current signal isolation and transfer
Temperature range: -45~+85
Good anti-jamming capability
Extremely high linearity (nonlinearity<2%)

Applications

DC current/voltage signal isolation/transmitter/amplifier
No distortion in long distance signal transmission
Analog signal data acquisition
4-20mA(0-20mA) signal isolation and transfer
Equipment and sensor signal acquisition
Signal transmit no-distortion
Electric power, distant control, isolated safe bar
4-20mA sensor analog signal transmission

Selection Guide:

Input Signal		Power Supply		Output Signal
Voltage	Code	Power	Code	Current	Code
0-5V	V1	24VDC	P1	0-20ma	A3
0-10V	V2	12VDC	P2	4-20ma	A4
0-75mV	V3	5VDC	P3	User-defined	A8
0-2.5	V4	15VDC	P4
User-defined	V8	User-defined	P8

Samples:

Input 0-5V, power supply: 24VDC, Output 4-20mA

Part number: IAP-V2-P1-A4

Input: 0-3V, power supply: 24VDC, Output: 4-20ma

Part Number: IAP-V8-P1-A4(V8:0-3V)

Input: 0-75mV, power supply: 24VDC, Output: 4-20ma

Part Number: IAP-V3-P1-A4

General parameter:

Parameter			Test Condition	Mix.	Type.	Max.	Unit
Isolation voltage			1min	3000			VDC
Gain					1		V/V
Gain temperature drift					100		ppm/
Gain Adj *1			3296 Multi-turn potentiometer		10K
ZA *2			3296 Multi-turn potentiometer		200

Non-linearity					0.1	0.2	%FSR
Input signal		Voltage		0		50	V
Input signal		Current		0		30	mA
Input maladjusted voltage					2	5	mV
Input impedance		Voltage		0.3	1		M
Input impedance		Current			250		ÃƒÅ½Ã‚Â©
Output signal		Voltage		-10		10	V
Output signal		Current		-20		20	mA
Load capability		Voltage	Vout=10V		2	Note*3	k
Load capability		Current		0	350	Note *4
Frequency response			-3DB		1		KHz
Signal output ripple			No-filter		10	20	mVRMS
Signal voltage temperature drift						0.2	mV/
Assistant power	Voltage		User-defined	3.3	12	24	VDC
Assistant power	Power loss				0.5	1	W
Operating temperature				-45		85
Storage temperature				-55		105

Note: All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output load unless otherwise specified.
Note: IAP V1-Px-V1 G.adj use 50K, other normal products use 10K.
Note: when Input signal is 0-xV, output is 4-20mA, need be connected to Gain adj. potentiometer and Zero adj. potentiometer.
Note: Current signal output products, if output does not have ZERO adjustment terminal (PIN8, PIN11), means this product does not need be adjusted ZERO.
Note: when input is voltage signal, because of the high input impedance, output value reaches its maximum when the input is in the open state. To prevent the scene of accidents, the user connect a 1M resistor and a 0.1UF capacitor on the input (PIN1, PIN2), so that when the input is open, output value is minimum 0.

Input parameters:

Input item	Input impedance	Input over load
0~1mA	1K	1.5 times of rated: Continuous
0~10mA	250 ohm(if need other impedance, such as 100 ohm, please note)	3.0 times of rated: 1S
0~20mA
4-20mA
Voltage signal	1M	2.0 times of rated: Continuous
User-defined	User-defined	User-defined
