4-Channel DI Switch Detection Counter

Product Description

 WJ160-N

 WJ160-x

Features:

>>4-CH switch inputs, supports NPN and PNP input

>>Each channel DI can be used as a counter or frequency measurement

>>Supports MODBUS TCP communication protocol

>>The number of pulses per revolution can be set for speed measurement

>>Built-in webpage function, you can check the level status through the webpage

>>The output status can be set through the web page

>>Wide power supply range: 8 ~ 32 VDC

>>High reliability, convenient programming and easy application

>>Standard DIN35 rail installation, convenient for centralized wiring

>>The user can set the module IP address and other parameters on the web page

>>Low cost, small size, modular design

>>Dimensions: 79 x 69.5 x 25 mm

Typical applications:

>>Flow meter pulse counting or flow measurement

>>Encoder pulse count

>>Application systems such as intelligent building control and security engineering

>>Ethernet industrial automation control system

>>Industrial field signal isolation and long-term transmission

>>Hall sensor speed measurement

>>Photoelectric sensor level detection and counting

>>Motor speed measurement

>>IoT switch signal acquisition

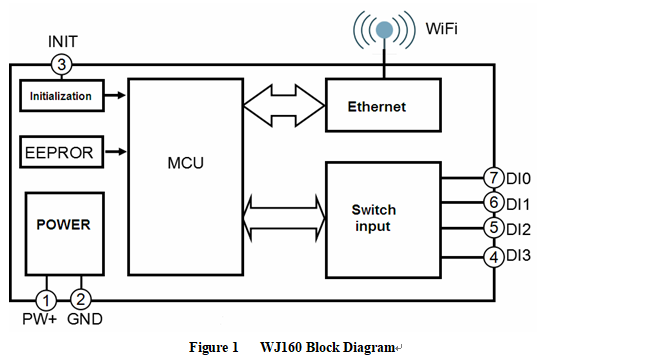

Product Overview:

   WAYJUN WJ160 is a Internet of Things and Industrial Ethernet acquisition module, to achieve the formation transparent between sensor and network. It can send sensor data exchange to network.

FunctionDescription:

WJ160-WIFI remote I/O module can be used tomeasure four channels switch signal. It can be used as four channels counter orfour channels frequency measurement..

1. Switchsignal input

   4-CH digital signal input, which can be connectedto dry contact NPN and wet contact PNP, details refer to the wiring diagram.

2. Communicationprotocol

   CommunicationInterface: WIFI network interface. It can be connected to WIFI in the LAN.

   CommunicationProtocols: supports MODBUS TCP protocols, can achieve industrial Ethernetdata exchange. Also can communication with the module via TCP socket.

   NetworkCache: 2K Byte (contains receive and send)

   Response Time: less than 10ms

 3. Anti-jamming

  Module internal has transient suppression diodes,can inhibit a variety of surge pulse, protection module.

ProductPart No.:

WJ160- WIFI

                       Communication Interface

                         WIFI: output is WIFI network interface
