DIN Rail Analog Signal Isolated Converters TWO IN TWO OUT

Product Description

•  Accuracy grade: 0.1/0.2. Factory calibrated, the user can use directly
•  Auxiliary power supply: 5V/12V/15V/24VDC or 220VAC (± 10%)
•  Two international standard signal input: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
•  Two standard output signal: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
•  High linearity (nonlinearity <0.2%)
•  DIN35 rail mounting
•  Size: 106.7x79.0x25.0mm
•   Strong anti-electromagnetic interference and high-frequency signal interference capability

•  Analog signal data isolation, collection and transformation
• Isolated 4-20mA or 0-20mA signal transmission
• Signal isolation and conversion of industrial site
•  Long-term signal transfer without distortion
• Instrument signal transceiver
• Power monitoring, medical equipment isolation
• Ground interference suppression
•  PLC / FA motor control signal isolation

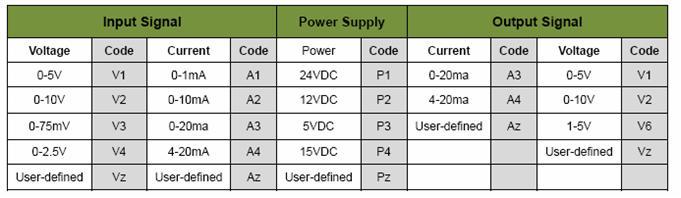

Samples:

• Input: two 4-20ma  ,power supply:24VDC,output:two 0-10V ,Part No.:DIN22 IAP A4-P1-V2
• Input: two 0-10V , power supply: 24VDC ,output:two 0-10V,art No.:DIN22 IAP V2-P1-V2
• Input: two 0-5V ,power supply:12VDC ,output: two 0-5V , Part No.:DIN22 IAP V1-P2-V1
• Input: two 0-3V ,power supply:24VDC ,output: two 4-20mA ,Part No.:DIN22 IAP Vz-P1-A4(Vz:0-3V)

Products Absolute Maximum Ratings:

• Continuous Isolation Voltage: 3000VDC
• Operating temperature: +85

• Storage Temperature: +150

• Soldering temperature): +300  (10 seconds)
• Supply voltage range:  ± 10% Vin
• Note: If you exceed this range, maybe cause products damage permanently
