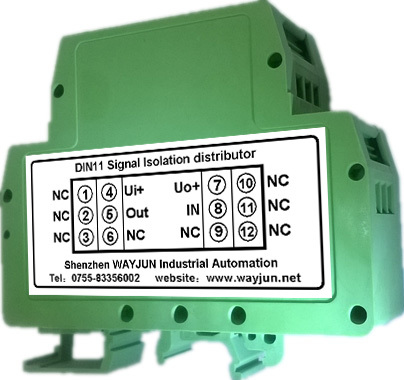

0-100mA/0-15V/0-500mA Large Current Signal Output Isolators

Product Description

Features:>> Optical Isolation
>> Accuracy grade: 0.1/0.2/0.5. Factory calibrated, the user can use directly
>> Auxiliary power supply: 5V/12V/15V/24VDC or 220VAC (± 10%)
>> One standard signal input: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
>> One standard output signal: 0-100mA/0-500mA/0-1A current signal or 0~1V(max 1A)/0~10V(max 500mA) voltage signal
>> High linearity (nonlinearity <0.2%)
>> DIN35 rail mounting
>> Size: 106.7x79.0x25.0mm
>> Strong anti-electromagnetic interference and high-frequency signal interference capability
 Application:>> Analog signal data isolation, collection and transformation
>> Isolated 4-20mA or 0-20mA signal transmission
>> Signal isolation and conversion of industrial site
>> Long-term signal transfer without distortion
>> Instrument signal transceiver
 >> Power monitoring, medical equipment isolation
