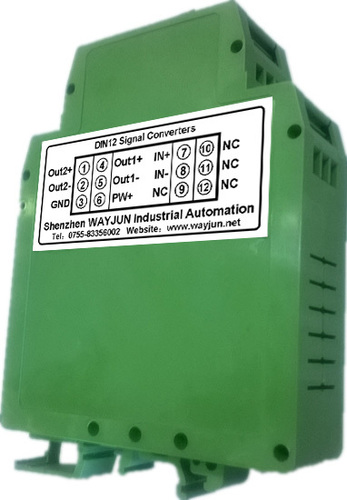

Analog signal isolated splitter(one in four out)

Product Description

Driven by technical excellence, we are counted as the reputed manufacturer and supplier of an excellent quality Analog signal isolated splitter(one in four out). This is manufactured under the direction of our deft team by utilizing the best quality material with the help of advanced technology. It is ideal for various industries such as electrical, automobile, chemical and petrochemical. In addition, the provided Analog signal isolated splitter(one in four out) can be customized in countless specifications according to the desired requirements of our clients.

Features:

WAYJUN this product uses advanced isolated technology, quarantine inspection / monitoring DC voltage signal, small size,low power,high accuracy. Input/output/auxiliary power supply three isolation.Widely used in such fields as electricity, chemicals, petroleum, industrial and automatic control.

Selection Guide:
 DIN14 IAP - V(A)

• Input:0-5V       Power Supply:24V  Output:four 4-20mA    Type No.: DIN14 IAP V1-P1-A4
• Input:0-10V     Power Supply:24V  Output:four 0-10V       Type No.: DIN14 IAP V2-P1-V2
• Input:4-20mA  Power Supply:24V  Output:four 4-20mA    Type No.: DIN14 IAP A4-P1-A4

• One input four output
• Accuracy ---------- 0.1%, 0.2%
• Isolation ---------- signal input / output / auxiliary power :3000VDC
• One standard signal input: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
• Four standard output signal: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
• Dimensions: 106.7x79.0x25.0mm
• Auxiliary power supply---------- DC5V(± 10%), 12V,15V, 24V(8-32VDC)
• Insulation resistance ----------  20M
• Operating Temperature ----------- -25 to +70  C
• Pressure ---------- signal input / output / auxiliary power
• Operating Humidity ---------- 10 ~ 90% (no condensation)
• Storage Temperature ----------- -45 ~ +80

• Impulse withstand voltage ---------- 3KV, 1.2/50us (peak value)
• Storage humidity ---------- 10 ~ 95% (no condensation)

• Size:120x70x43mm

More details,please check our Shenzhen WAYJUN Industrial Automation website,you can also order online by Paypal.
