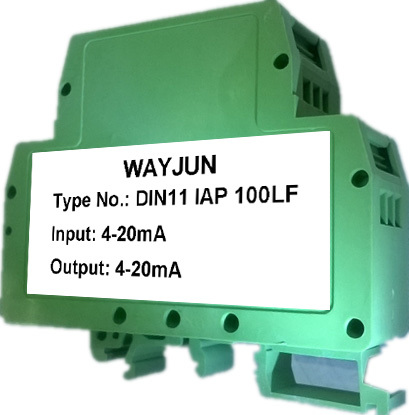

Pwm pulse width modulation signal isolated transmitter
Product Details:
X
Product Description
PWM signal to 4-20ma/0-10V isolated converters
Features:
- Accuracy grade: 0.2/0.5. Factory calibrated, the user can use directly
- Auxiliary power supply: 5V/12V/15V/24VDC
- PWM pulse width modulation signal input:50Hz~100KHz
- International standard signal output: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
- High linearity (non-linearity <0.2%)
- Three-port 3000VDC isolation: input/power supply/output
- DIN35 rail mounting
- Size: 79.0x69.50.0x25.0mm
- Strong anti-electromagnetic interference and high-frequency signal interference capability
- CE approved
Products Listing:
DIN11 IAP PWM - P - V/A
| Input Signal | Power | Output Signal | |||||
| PWM signal | code | Power | code | current | code | voltage | code |
| 50~99Hz | PWM1 | 24VDC | P1 | 0-20ma | A3 | 0~5V | V1 |
| 100Hz~900Hz | PWM2 | 12VDC | P2 | 4-20ma | A4 | 0-10V | V2 |
| 1KHz~9KHz | PWM3 | 5VDC | P3 | user-defined | Az | 1-5V | V6 |
| 10KHz~100KHz | PWM4 | 15VDC | P4 | user-defined | Vz | ||
| user-defined | PWMz | ||||||
samples:
1:Input signal:100Hz PWM Power supply:24V Output signal:4-20mA
Type No.: DIN11 IAP-PWM2-P1-A4
2:Input signal: 5KHz PWM Power supply:12V Output signal:0-10V
Type No.: DIN11 IAP-PWM3-P2-V2
3:Input siganl: 20KHz PWM Power supply:24V Output signal:4-20mA
Type No.: DIN11 IAP-PWM4-P1-A4
General Parameters:
| Name | Test Condition | Min. | Type | Max. | Units |
| Isolation Voltage | 50Hz,1min.,leak current 1mA | 2500 | VDC | ||
| Iaolation | Input/power supply/output | ||||
| Impact Voltage | 3KV, 1.2/50us(peak value) | ||||
| Operation Temperature | -25 | +70 | |||
| Operation Humidity | No condensation | 10 | 90 | % | |
| Storage Temperature | -45 | +80 | |||
| Storage Humidity | 10 | 95 | |||
