PWM pulse width modulation to 4-20ma/0-10V

Product Description

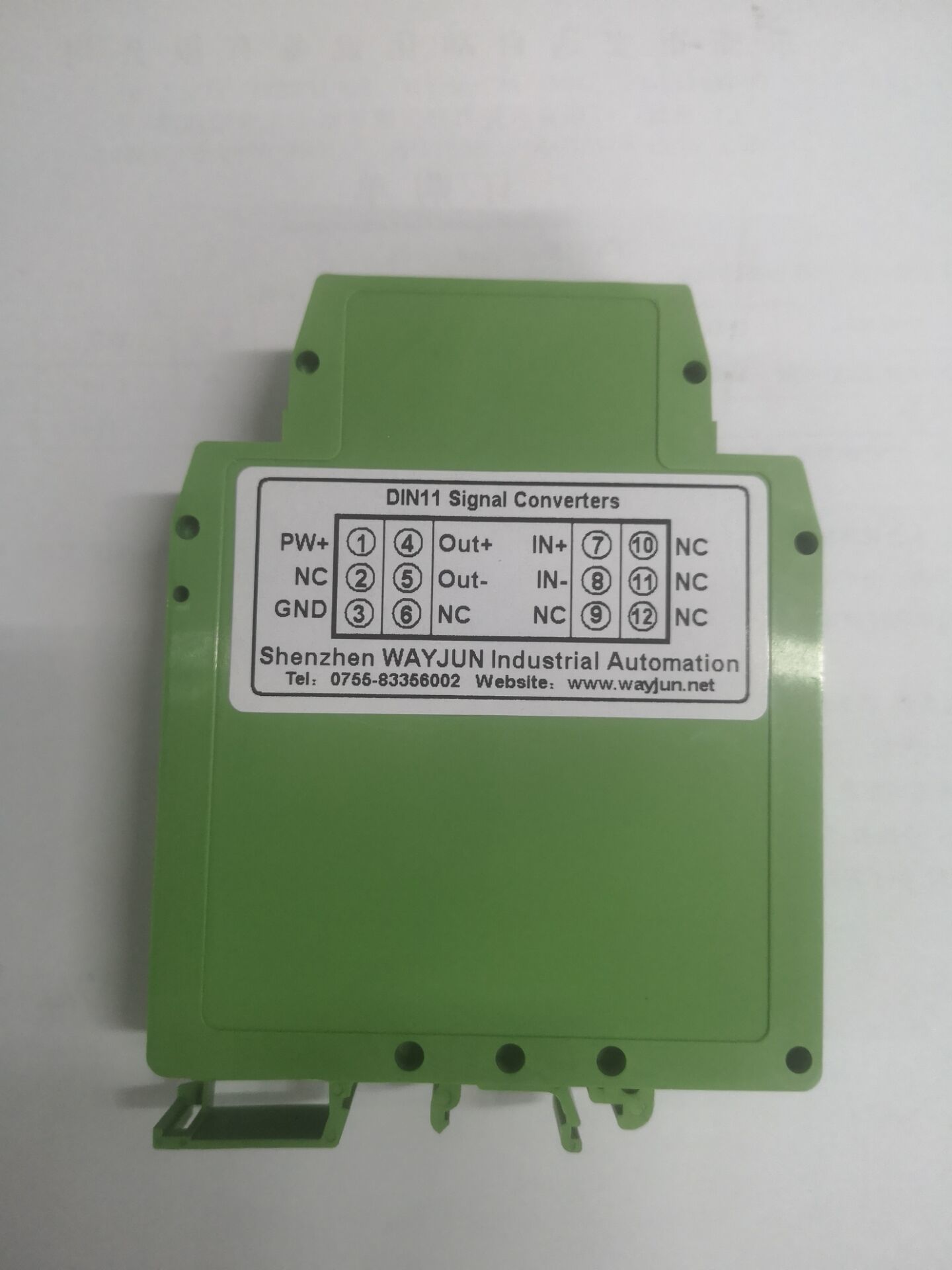

PWM signal to 4-20ma/0-10V isolated converters

Features:

• Accuracy grade: 0.2/0.5. Factory calibrated,the user can use directly
• Auxiliary power supply: 5V/12V/15V/24VDC
• PWM pulse width modulation signal input:50Hz~100KHz
• International standard signal output: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
• High linearity (non-linearity <0.2%)
• Three-port 3000VDC isolation:input/power supply/output
• DIN35 rail mounting
• Size: 79.0x69.50.0x25.0mm
• Strong anti-electromagnetic interference and high-frequency signal interference capability
• CE approved

• Digital signal to analog signal,DA transform
• Isolated 4-20mA or 0-20mA signal transmission
• Signal isolation and conversion of industrial site
• PWM signal without distortion transmission
• nstrument signal transceiver
• Power monitoring, medical equipment isolation
• Ground interference suppression
• PLC / FA motor control signal isolation
• Pulse width measurement

Products Listing:

 samples:

Input signal:100Hz PWM   Power supply:24V   Output signal:4-20mA

• Type No.: DIN11 IAP-PWM2-P1-A4
• Input signal: 5KHz PWM    Power supply:12V   Output signal:0-10V
  Type No.: DIN11 IAP-PWM3-P2-V2
• Input siganl: 20KHz PWM    Power supply:24V   Output signal:4-20mA
  Type No.: DIN11 IAP-PWM4-P1-A4

Note:

•  Before using, accordingto packing lists, and product labels, check the quantity, models andspecifications
• When measure the signaldirectly, please set the terminal tighten
• There are no damagedinsulation, conductive dust and corrosive fumes of metal in the environment
• Installation pitch ≥10mm
• We have adjusted well, donot adjust arbitrarily
• Two years warranty. Butif clients damage products by themselves or tear off any labels on the product,we can not

Exchange

• Products can not beenused in strong magnetic field
•  Internal noanti-lightning circuit
• Specifications subject tochange without notice
