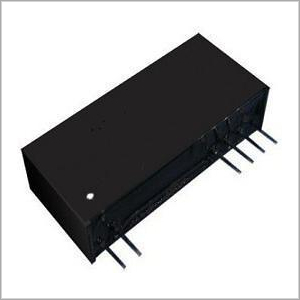

DC Current/Voltage Conditioners (one in one out)
Product Details:
X
Product Description
Features:- Optical Isolation Amplifier Module
- Accuracy grade: 0.1/0.2/0.5. Factory calibrated, the user can use directly
- Auxiliary power supply: 5V/12V/15V/24VDC (± 10%)
- International standard one signal input: 0-100mV/0-75mV/0-24V/0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA/0-±5V/0-±10V/0-±100mV/0-±20mA
- Standard one output signal: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
- High linearity (nonlinearity <0.2%)
- DIN35 rail mounting
- Size: 79.0x69.50.0x25.0mm
- Strong anti-electromagnetic interference and high-frequency signal interference capability
- Analog signal data isolation, collection and transformation
- Isolated 4-20mA or 0-20mA signal transmission
- Signal isolation and conversion of industrial site
- Long-term signal transfer without distortion
- Instrument signal transceiver
- Power monitoring, medical equipment isolation
- Ground interference suppression
- PLC / FA motor control signal isolation
Details:
| Input Signal | Power Supply | Output Signal | |||||||
| voltage | code | current | code | Power | code | current | code | voltage | code |
| 0-5V | V1 | 0-1mA | A1 | 24VDC | P1 | 0-20ma | A3 | 0-5V | V1 |
| 0-10V | V2 | 0-10mA | A2 | 12VDC | P2 | 4-20ma | A4 | 0-10V | V2 |
| 0-75mV | V3 | 0-20ma | A3 | 5VDC | P3 | 0~±20ma | A6 | 1-5V | V6 |
| 0-2.5V | V4 | 4-20mA | A4 | 15VDC | P4 | user-defined | Az | 0~±10V | V7 |
| 0~±5V | V5 | 0~±10mA | A5 | - | - | - | - | user-defined | Vz |
| 0~±10V | V7 | 0~±20mA | A6 | - | - | - | - | | |
| 0~±100mV | V10 | user-defined | Az | - | - | - | - | - | - |
| user-defined | Vz | - | - | - | - | - | - | - | - |
