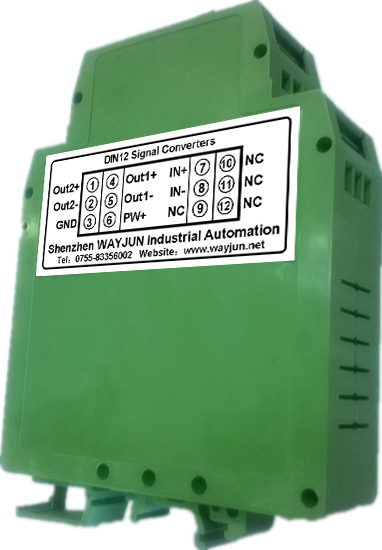

0-10V voltage signal isolated splitter 3000V isolation one in two out

0-10V voltage signal isolated splitter 3000V isolation one in two out

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Accuracy: 0.1%, 0.2%
Isolation : signal input / output / auxiliary power 3000VDC
One standard signal input: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
Two standard output signal: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
Dimensions: 106.7x79.0x25.0mm
Auxiliary power supply: DC5V(± 10%), 12V,15V, 24V(8-32VDC)
Insulation resistance : 20M
Operating Temperature : -25 to +80 ° C
Pressure : signal input / output / auxiliary power
Operating Humidity :10 ~ 90% (no condensation)
Storage Temperature :-45 ~ +80
Impulse withstand voltage : 3KV, 1.2/50us (peak value)
Storage humidity :10 ~ 95% (no condensation)

Selection Guide:
DIN12 IAP - V(A) - P - V/I

input signal				power supply		two output signal
voltage	code	current	code	Power	code	current	code	voltage	code
0-5V	V1	0-1mA	A1	24VDC	P1	0-20ma	A3	0-5V	V1
0-10V	V2	0-10mA	A2	12VDC	P2	4-20ma	A4	0-10V	V2
0-75mV	V3	0-20ma	A3	5VDC	P3	-20ma~+20ma	A6	1-5V	V6
0-2.5V	V4	4-20mA	A4	15VDC	P4	user-defined	Az	1~±5V	V4
0~±5V	V5	0-±10mA	A5	user-defined	Pz			0~±10V	V7
0-±10V	V7	0-±20mA	A6					user-defined	Vz
0-±100mV	V10	user-defined	Az
user-defined	Vz

Samples:
1.Input:0-5V Power Supply:24V Output:two 4-20mA Type No.: DIN12 IAP- V1-P1-A4
2.Input:0-10V Power Supply:24V Output:0-10V/4-20mA Type No.: DIN12 IAP-V2-P1-V2A4
3.Input:4-20mA Power Supply:24V Output:two 4-20mA Type No.: DIN12 IAP- A4-P1-A4
4.Input:0-10V Power Supply:24V Output:two0-10V Type No.: DIN12 IAP V2-P1-V2
